Physical Chemistry: The Simple Hückel Method (Part III)

In the previous article, we have learn how to set up the Hückel determinant for conjugated linear molecules based on the topology of the \pi-bonds. In this third article, we will apply the method to cyclic molecules and will derive some other useful properties.

The cyclopropenyl system: the cyclic equivalent of the allyl molecule

Cyclopropenyl is a well studied system studied. The cation is generated by  mixing of 3-chlorocyclopropene with strong Lewis acids such as antimony pentachloride, aluminum trichloride, or silver fluoroborate. The salt is stable and can be studied using NMR [1].

The Hückel determinant for the cyclopropenyl cation is shown in the following picture.

The characteristic equation is the cubic polynomial

x^3-3x+2=0

with roots x_1=-2, x_2=x_3=1.

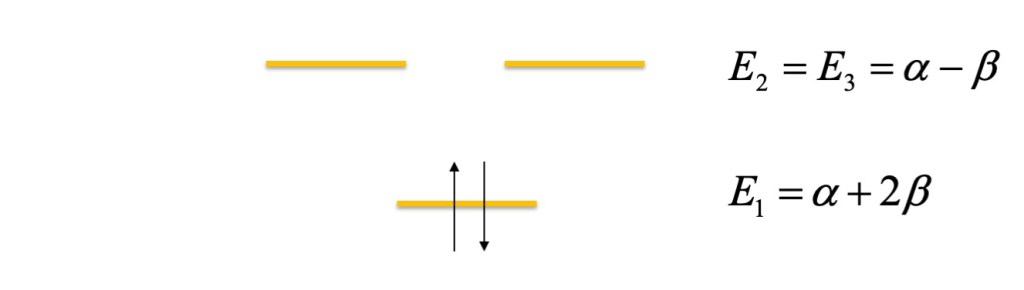

The cation is a two electrons system, therefore we can represent the orbital energy in this way

The coefficients of the orbital function are found by solving the system

Therefore, we obtain the coefficients for the wavefunction of the orbital with the lowest energy by setting the eigenvalue x=x_1=-2 in the above system

\phi_1=\left(\frac{1}{\sqrt{3}}\right)\chi_1+\left(\frac{1}{\sqrt{3}}\right)\chi_2+\left(\frac{1}{\sqrt{3}}\right)\chi_3.

In the following slide, the wavefunction \phi_1 is schematically represented. The colour indicates the signs of the lobes that are separated by a plane of symmetry.

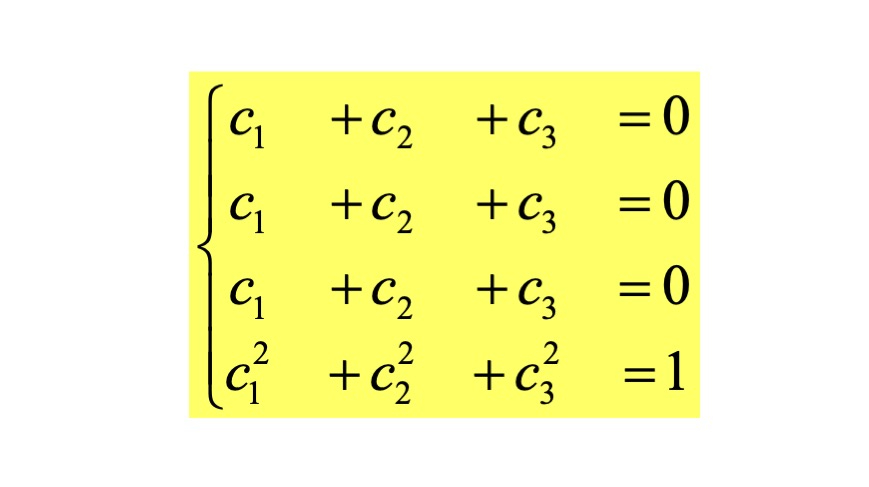

We can proceed finding a second set of coefficient by setting x=x_2=1 and by solving the following system

The equation are linear dependents and this give infinite possible solution. For convenience we set c_1=-c_2 and c_3=0 and from the normalization equation we obtain the following wavefunction

\phi_2=\left(\frac{1}{\sqrt{2}}\right) \chi_1 - \left(\frac{1}{\sqrt{2}}\right)\chi_2 .

For the third solution, we need to find a new orthonormal wave function using a mathematical procedure know as Gram-Schmidt orthogonalization. This is accompished by imposing the condition of normalizzation starting from one set of coefficients

c_1=\frac{1}{\sqrt{2}}; c_2=0; c_3=-\frac{1}{\sqrt{2}}

S=\int \phi_2 \phi_3 d \nu =\frac{1}{2}(\chi_1-\chi_2)(\chi_1-\chi_3)d \nu=\frac{1}{2}

We define a function \phi_3'=\phi_3-S\phi_2 and we apply the condition of orthogonalizzation

\int \phi_2\phi_3' d\nu =\int\phi_2(\phi_3-S\phi_2)d\nu=\int\phi_2\phi_3d\nu -S\int \phi_2\phi_2 d\nu =0

Therefore,

\phi_3'=\phi-\frac{1}{2}\phi_2=\frac{1}{2\sqrt{2}} \left( \chi_1+\chi_2-2\chi_3 \right)

By renomarlization

\phi_3" =\frac{1}{\sqrt{6}} \left(\chi_1+\chi_2-2\chi_3\right)

The wavefunctions, \phi_2 and \phi_3" are schematically represented in the following figure. The colour indicates the signs of the lobes and the dotted lines intersection fo the nodal planes (e.g. the sign of the wavefunctions changed crossing them) with the molecular plane. From the first lesson, we have learned that nodal planes produce antibonding or nonbonding states with higher energy. The energy increase with the number of nodal planes was also shown in the particle in a box example. Note also the nodal planes are perpendicular to each other a common feature in degenerated molecular orbitals.

It is important to note that the SHMO’s orbital level refers to symmetric molecules with equilateral structure. Indeed, this structure is unstable, and in reality, the structure is distorted to an isosceles triangle separating the energy level of the two degenerated states. That is an example of the Jahn-Teller theorem, which states that a system with an odd number of electrons in degenerated molecular orbitals will change its geometry to remove the degeneracy [2].

Also for cyclic polyene, there are the simple formulas reported in the following slides that can be used to calculate the energy and the coefficients of the HMO.

Slide34

The output of the program for the cyclopropenyl system is the following

 Number of atoms                    : 3
 Number of electrons                : 2
 Number of double occupied orbitals : 0
 Number of single occupied orbitals : 0
 Orbital Energies:
  E1=alpha   +2.000beta
  E2=alpha   -1.000beta
  E3=alpha   -1.000beta
 Total Electronic Energy:
  Epi=   2.000alpha   +2.000beta
 Wavefunctions:
  Psi(1)= (  +0.577)X(1)(  +0.577)X(2)(  +0.577)X(3)
  Psi(2)= (  +0.000)X(1)(  -0.707)X(2)(  +0.707)X(3)
  Psi(3)= (  +0.816)X(1)(  -0.408)X(2)(  -0.408)X(3)

THE MOLECULE OF BENZENE

The benzene molecule is a 6 carbon ring. There are 6 electrons delocalized in 6 atomic pz orbitals that contribute to form the Hückel molecular orbitals, as shown in the next figure

The Hückel 6×6 determinant is shown in the left side of the next slide

The solution of the determinant produce 6 eigenvalues x_{1,6}=2,-2 and other two degenerated pairs with value x_{2,4} =1 and x_{3,5}=-1, respectively. The energies of the MOs are shown in the following figure.

The total energy is equal to 6\alpha + 8\beta. To estimate the gain of the energy due to the resonance, we compared to the total Hückel energy with the one of an ideal six carbon ring containing three isolated double bonds that is equal to 6\alpha + 6\beta. Therefore the resonance energy is equal to 2\beta tha correspond to an experimental value of $36 kcal/mol. This allows us to estimate the a value for \beta=18 kcal/mol.

The coefficients of the MOs calculated using the program reported in the appendix are the following:

 Number of atoms                    : 6
 Number of electrons                : 6
 Number of double occupied orbitals : 0
 Number of single occupied orbitals : 0
 Orbital Energies:
  E1=alpha   +2.000beta
  E2=alpha   +1.000beta
  E3=alpha   +1.000beta
  E4=alpha   -1.000beta
  E5=alpha   -1.000beta
  E6=alpha   -2.000beta
 Total Electronic Energy:
  Epi=   6.000alpha   +8.000beta
 Wavefunctions:
  Psi(1)= (  +0.408)X(1)(  +0.408)X(2)(  +0.408)X(3)(  +0.408)X(4)(  +0.408)X(5)(  +0.408)X(6)
  Psi(2)= (  +0.000)X(1)(  -0.500)X(2)(  +0.500)X(3)(  -0.000)X(4)(  -0.500)X(5)(  +0.500)X(6)
  Psi(3)= (  +0.577)X(1)(  -0.289)X(2)(  -0.289)X(3)(  +0.577)X(4)(  -0.289)X(5)(  -0.289)X(6)
  Psi(4)= (  +0.000)X(1)(  -0.500)X(2)(  +0.500)X(3)(  -0.000)X(4)(  -0.500)X(5)(  +0.500)X(6)
  Psi(5)= (  +0.577)X(1)(  -0.289)X(2)(  -0.289)X(3)(  +0.577)X(4)(  -0.289)X(5)(  -0.289)X(6)
  Psi(6)= (  +0.408)X(1)(  -0.408)X(2)(  +0.408)X(3)(  -0.408)X(4)(  +0.408)X(5)(  -0.408)X(6)

The following slide shows a pictorial representation of the signs of the p-orbital functions in each MO.

In the next article, we are going to use the Hückel MOs to calculate important molecular properties.

If you have found interesting and useful my article, do not forget to press “Like it” and subscribe for updates on new ones!

REFERENCES

  1. Breslow, R. and Groves, J.T., 1970. Cyclopropenyl cation. Synthesis and characterization. Journal of the American Chemical Society92(4), pp.984-987.
  2. J. P. Lowe. Quantum Chemistry. 1993, Academic Press.
  3. F.A. Carroll. Structure and Mechanism,1998, BROOKS/COLE Publishing Company.

APPENDIX

Program in awk language to calculate the energy and coefficients of the Hückel molecular orbitals. You may change the variable for the number of atoms (n) and the number of electron (ne) to your convenience before running the program using the command:

gawk -f HMOCyclicMol.awk

#======================================================================
#
#  NAME:  HMOCyclicMol.awk
#
#======================================================================
#  DESCRIPTION: Calculate the energy level and coefficients of the
#               Huckel orbitals for cyclic polyenes
#======================================================================
# Copyright (C): 2021 Danilo Roccatano
#======================================================================
#

function bubble(n,x,     ix) {
#
# Improved bubble sort method
#
    for (i=1;i<=n-1;i++) {
        b=x[i]
        ib=ix[i]
        k=i
        for (j=i+1;j<=n;j++) {
            if (b>=x[j]) {
                b=x[j]
                ib=ix[j]
                k=j
            }
        }
        x[k]=x[i]
        x[i]=b
        ix[k]=ix[i]
        ix[i]=ib
    }
}

function inprod(n,vec,vec1) {
    inp=0.0
    for (i=1;i<=n;i++ ) {
        inp += vec[i]*vec1[i]
    }
    return inp
}

function abs(c) {return c<0?-c:c}

BEGIN {
    n=3 # number of atoms in the ring
    ne = 2  # number of electrons in the ring
    pi=4*atan2(1,1)
#
    printf "Number of atoms                    : %d \n",n
    printf "Number of electrons                : %d \n",ne
    printf "Number of double occupied orbitals : %d \n",npe
    printf "Number of single occupied orbitals : %d \n",nue
#
# Calculate the eigenvalues
#
    tEa=0
    tEb=0
    for (k=1;k<=n;k++) {
        x=-2*cos(2*k*pi/n)
        Eb[k]=x
        iEb[k]=k
    }

    #
    # Check for degenerate eigenvalues
    #

    for (k=1;k<=n;k++) Sim[k]=0

    for (k=1;k<=n;k++) {
        for (l=k+1;l<=n;l++) {
            if (abs(Eb[k]-Eb[l])<0.00001) {
                Sim[k]=l
                Sim[l]=k
            }
        }
    }
#
# Calculate the wavefunction coefficients
#
    for (k=1;k<=n;k++) {
        for (l=1;l<=n;l++) {
            rc[k,l]=sqrt(1/n)*cos(2*k*(l-1)*pi/n)
            ic[k,l]=sqrt(1/n)*sin(2*k*(l-1)*pi/n)
        }
    }

    #
    # Remove complex coefficients
    #

    for (k=1;k<=n;k++) {
        sum=0
        sum1=0
        kk=Sim[k]
        if (kk!=0 && k< kk) {
            for (l=1;l<=n;l++) {
                ar[l]=rc[kk,l]+rc[k,l]
                ai[l]=ic[kk,l]+ic[k,l]
                sr[l]=rc[kk,l]-rc[k,l]
                si[l]=ic[kk,l]-ic[k,l]
                sum+=(ar[l]*ar[l])
                sum1+=(si[l]*si[l])
            }
        }
        for (l=1;l<=n;l++) {
            if (kk!=0 && k<kk) {
                ar[l]=ar[l]/sqrt(sum)
                si[l]=si[l]/sqrt(sum1)
            }
        }
        if (kk!=0) {
            for (l=1;l<=n;l++) {
                rc[kk,l]=si[l]
            }
            for (l=1;l<=n;l++) {
                rc[k,l]=ar[l]
            }

        }

    }
    printf "Orbital Energies:\n"
#
# Print the energy values
#
    bubble(n,Eb,iEb)
    for (k=1;k<=n;k++) {
        printf " E%d=alpha %+8.3fbeta\n",k,-Eb[k]
    }
#
# Calculate the total energy of the electronic system

#
    npe=int(ne/2)
    nue=ne-2*npe
    for (i=1;i<=npe+nue;i++) {
        fa=1
        if (i<=npe)  fa=2
        tEa+=fa
        tEb+=fa*Eb[n-(i-1)]
    }

    printf "Total Electronic Energy:\n"
    printf " Epi=%8.3falpha %+8.3fbeta\n",tEa,tEb

#
# Sort the energy and wavefunctions and print them
#

    printf "Wavefunctions:\n"
    for (k=1;k<=n;k++) {
        printf " Psi(%d)= ",k
        kk=iEb[k]
        for (l=1;l<=n;l++) {
            printf "(%+8.3f)X(%d)",rc[kk,l],l
        }
        printf"\n"
    }
}
